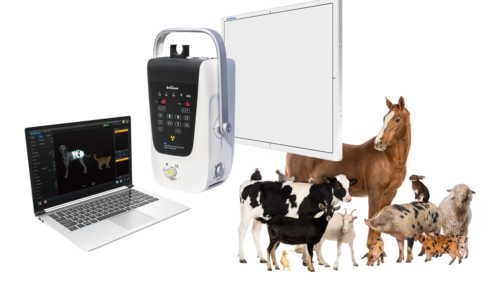

Переносной рентгеновский аппарат РЕЦИС-2,0

1.1

Максимальная мощность

2.0 kW

1.2

Номинальная мощность

1.6 kW

1.3

Диапазон напряжения

40-90 kV, in 1 kV steps

1.4

Ток трубки

10-32 mA

1.5

Экспозиция

0.1-32 mAs

1.6

Длительность экспозиции

10 ms – 1400 ms

1.7

Источник питания

Инвертор, 40kHz

1.8

Анод трубки

стационарный

1.9

Фокусное пятно

0.8 mm

1.10

Угол анода

20°

1.11

Anode heat capacity

10 kHU (7 kJ)

1.12

Overload protection

Guarantees the combinations of loading factors

will not exceed the rated capacity of X-ray

2. Коллиматор

2.1

Шторки

1.2 mm Al @ 70 kV

2.2

Подсветка

Built-in LED light with 30s auto-off timer. More

than 100 LUX

2.3

Размер окна

🞄     5 x 5 mm minimum;

🞄     430 x 430 mm maximum;

2.4

Bubble level

Colliamtor features a bubble level for quick

positioning calibration

3. Цифровой плоскопанельный детектор

3.1

Технология

Wireless detector, Amorphous Silicon, whole

panel technology

3.2

Рабочее поле

358 × 430 mm

3.3

Размер

14 × 17 inches

3.4

Размер пикселя

140 μm

3.5

Матрица пикселей

2560 × 3072 pixels

3.6

Разрешение

3.6 lp/mm

3.7

A/D conversion

16 bits

3.8

Вес

3.7 kg

4. Tripod

4.1

Tripod

Extended vertical travel range with 4-section leg lever lock mechanism enables stable imaging at

any chosen height

4.2

Distance from tube

focus to the floor

85-2600 mm, ± 5%

4.3

Rotation of X-ray unit

🞄     ± 180° around vertical axis;

🞄     ± 180° around lateral axis;

4.4

Вес рентгеновского генератора

3.6 kg, ± 10%

4.5

Размер (L x W x H)

850 × 150 × 130 mm, ± 5%, folded

5. X-ray Unit Mechanical Specification

5.1

Control panel

User-friendly and smart control panel supports:

🞄     Exposure status indicators;

🞄     Parameters settings;

🞄     APR selections include rabbits, dogs, snakes, cats, horses, and parrots/hamsters;

🞄     Common APR parameter adjustment and

saving/resetting;

5.2

Built-in battery

Built-in lithium-ion battery

5.3

Weight

8.5 kg, ± 10%

5.4

Dimension (L x W x H)

330 x 220 x 170 mm, ± 5%

6. Digital Image Workstation

6.1

CPU

Intel Core i5 or better

6.2

Memory capacity

4 GB or more

6.3

Hard disk

500 GB or better

7. Digital Image Processing Software

7.1

Registration

Enter basic information

7.2

Parameters setting

Multiple APRs can be selected

kV, mA, ms, focus size can be adjusted

7.3

Image processing

Brightness and contrast adjustment, window

width/level control

Zoom, cropping, rotation, inversion, annotation,

image movements, image flip, etc.

Image rejection analysis

7.4

DICOM functions

DICOM 3.0 compatible

Storage, Worklist, MPPS, Print, and etc.

7.5

Status indicator

Working status of X-ray tube, detector, etc.

Error codes display

8. Power Specification

8.1

Input power

Single-phase AC, 110V/220V ± 10%, 50/60Hz

8.2

Battery capacity

🞄     Standby time more than 8 hours;

🞄     More than 300 times exposures;

9. After-sales Service

10.1

The machine warranty 1 year

10.2

1 set of complete operation and maintenance manual

10.3

Free service hot line

10. International Certificate

10.1

ISO 13485: 2016

Medical devices – Quality management systems – Requirements for
